12M Tri Axle Trailer for Sale

12m Tri Axle Trailer for Sale:

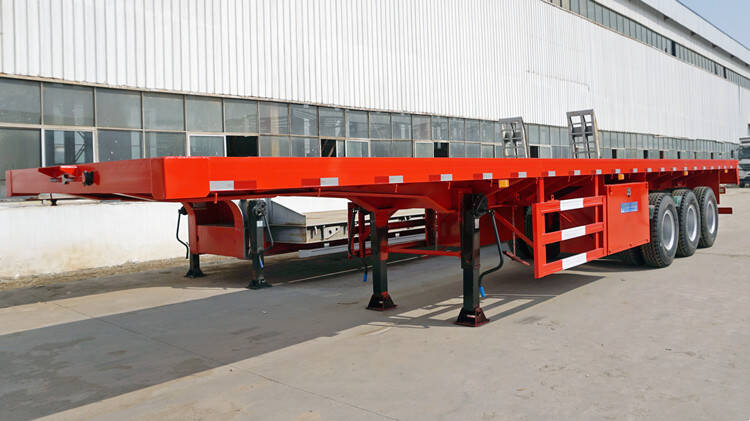

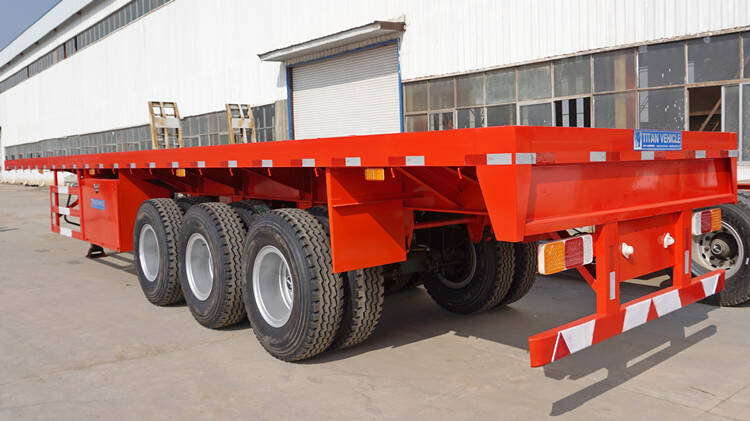

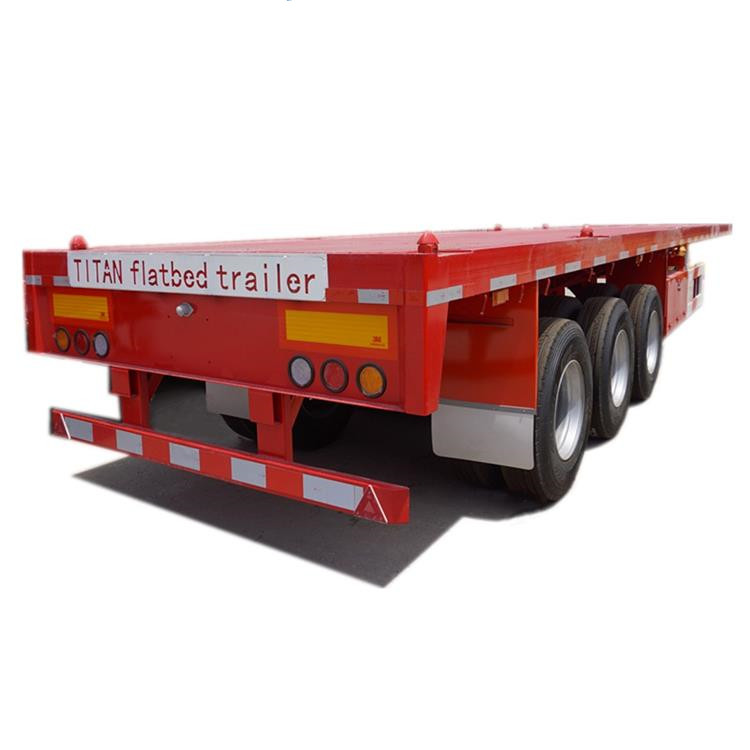

Tri axle trailer for sale is commonly used to transport various bulk cargoes and containers, 12m tri axle trailer for sale can transport 1×40ft or 2×20ft container.

The size of the tri axle trailer for sale loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.

Tri Axle Trailer Price | 12M Tri Axle Trailer for Sale in Harare

Tri Axle Trailer Price | 12M Tri Axle Trailer for Sale in Harare

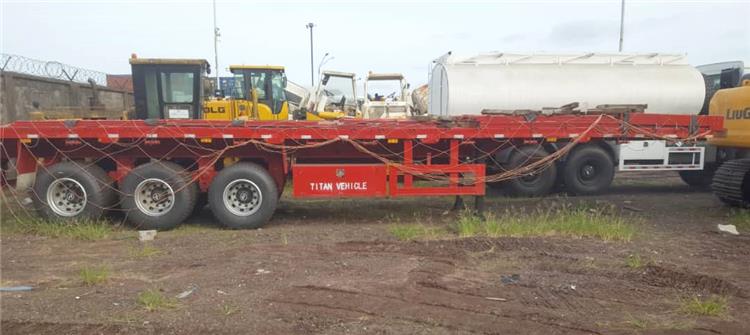

Customer Feedback - 12M Tri Axle Trailer for Sale in Harare

Specification of tri axle trailer price:

Model: Tri axle trailer for sale

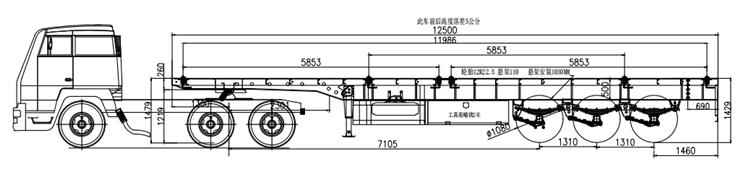

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages of tri axle trailer for sale:

1. We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the tri axle trailer for sale in harare floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stability and safety.

4. Polyurethane paint, the 12m tri axle trailer for sale is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight quality container locks, make sure the stable and safety of the loads.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
