Foton est m cargo box truck brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple. High mounted front steel bumpers protect against unwieldy roads, even when under full load.
Price of Foton Trucks | Foton EST M Cargo Box Truck | Foton Auman Truck in Lagos
Price of Foton Trucks | Foton EST M Cargo Box Truck | Foton Auman Truck in Lagos
Price of Foton Trucks | Foton EST M Cargo Box Truck | Foton Auman Truck in Lagos
Price of Foton Trucks | Foton EST M Cargo Box Truck | Foton Auman Truck in Lagos
Drive style: 4×2
Steering wheel position: Left hand
Platform: EST-M
Chassis model: BJ1226VMPHD-1
Dimension
Wheelbase (mm) : 4200
chassis Dimensions (mm) : 7605×2460×2820
Tread (front/rear) (mm) : 2008/1860
Weight
Chassis kerb weight(kg): 5470
performance Maximum speed (km/h): 105(4.875)
Cabin

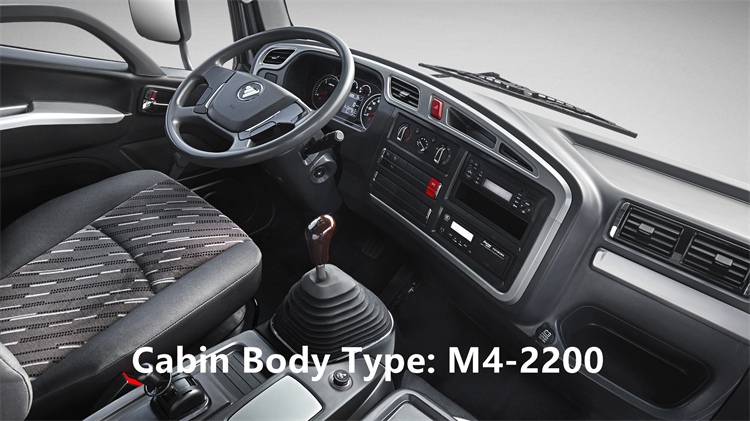

Body type: M4-2200
Carrying number: 2
Engine
Model: YC6A240-33
Type : In-line,six-cylinder,diesel engine.
Displacement (L): 7.23L
Max power (kw/hp/rpm): 177/240/2300
Max torque (Nm/rpm): 900/1400-1600
Brand: yuchai
Emission: Euro Ⅱ
Clutch
Type: diaphragm spring
Plate diameter: φ430
Gearbox
Model: 8JS105TA
Brand: FAST
Brake
Service brake: Dual Circuit Air Brake
Auxiliary brake: Exhaust brake
Suspension
Front suspension/leaf spring number: Non-independent suspension /9
Rear suspension/leaf spring number: Non-independent suspension /10+8
Front axle
Rated load: 5.5 t
Brake type: Drum brake
Rear axle
Rated load: 10t
Reduction ratio: 4.8
Brake type: Drum brake
Tyre
Model: 11R22.5
Quantity: 6+1
Steering Gear
Steering Model: φ100
Fuel tank
Cubage and material: 200L Aluminum 200L
Electrical system
Power: 12V
Battery: 135A.H/2
Other Basic equipment: Air conditioning/manual doors and windows and rearview mirror/MP3/power steering/knitted shock absorber seat (spring)
Provide with standards products,
service, accessories, training
and technical support.
