2 Axle Shipping Container Trailer

Shipping container transport trailer description:

Due to 40 ft container trailer for sale application and use, shipping container trailer for sale is made of high-strength materials. It is a rugged structure designed to provide you with the services you need.

Container transport trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.

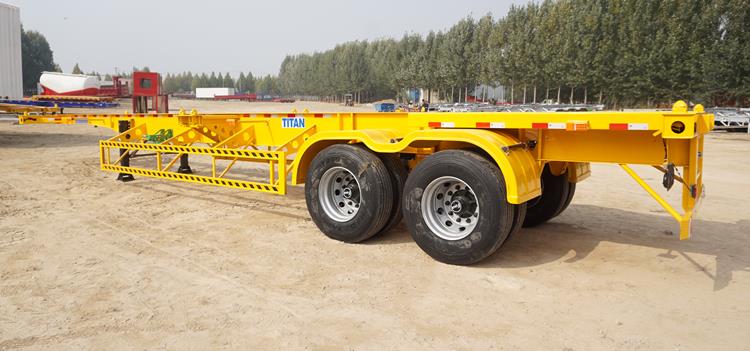

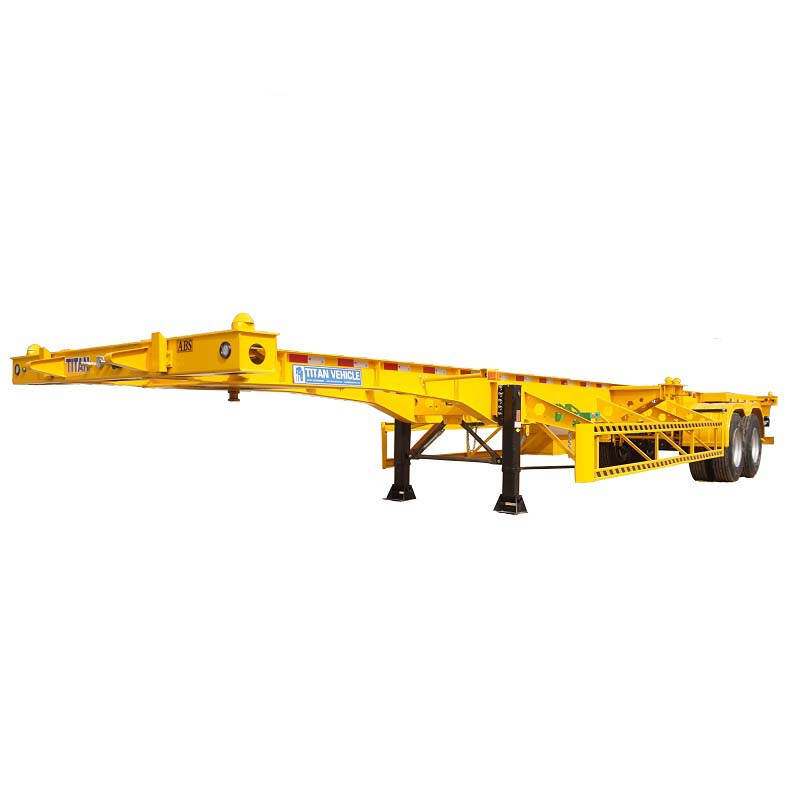

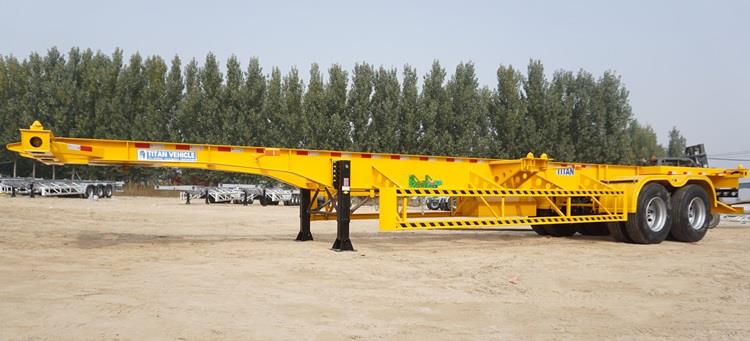

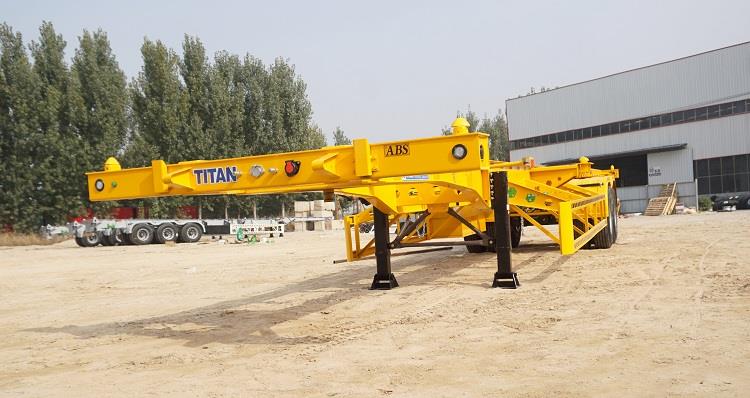

2 Axle 40ft Shipping Container Transport Trailer for Sale

2 Axle 40ft Shipping Container Transport Trailer for Sale

Specification of container transport trailer:

Dimension(mm): 12300x2500x1520mm

Loading capacity(ton): ≤60T

Axles: 2 axle

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
