Foton Auman Truck Head

Foton Auman Truck Head Price: 35000USD

Built for long-distance hauling, the foton auman truck head is has a modern exterior with advanced safety & fuel efficiency systems, which make for an unforgettable ride.

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton Heavy Duty Trucks | Foton Auman Truck Head for Sale In Nigeria | Foton 6x4 Auman EST

Foton 6x4 Auman EST Specification

Function: Tractor head

Drive Style: 6×4

Steering Wheel Position: Left hand

Platform: EST

Wheelbase (mm): 3300＋1350

Long(mm): 7000

Width(mm): 2500

Height(mm): "3696(Without Air deflector )

3890(With Air deflector)"

Chassis Kerb Weight(kg): 10430

GCW(t): 90

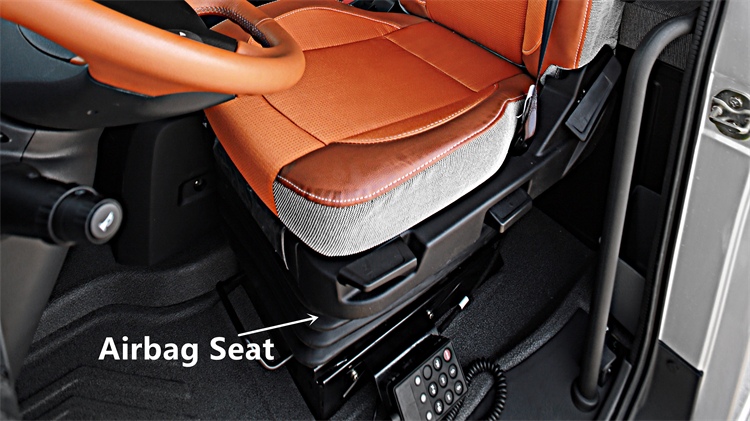

Body Type: High roof, all welded steel cab, 4-points full airbag suspension cab, electric cab tilting, adjustable driver's seat(pneumatic seat), seatbelt for driver and co-driver, electric rear-view mirrors and windows, electric heated rearview mirror,central locking, MP5+Radio+USB

Carrying Number: 2 seats + 2 bunk

Engine Model: ISGe3-430

Engine Type: Inline six-cylinder, four-stroke, water-cooled,  turbocharged, intercooler, direct injection, common rail diesel engine

Displacement (cc): 11,800

Max Power (kw/ps/rpm): 316/430/1900

Max Torque (Nm/rpm): 2000/1000-1400

Engine Brand: CUMMINS

Emission: Euro III

Clutch Type: Single, dry type diaphragm spring

Plate Diameter(mm): φ430

Operating System: Hydraulic control with air  pressure assistance

Gearbox Model: ZF16S2235TD

Gearbox Brand: ZF

Numbers of Gears: 16 Forward and 2 Reverse

Service Brake: Dual circuits pneumatic brake

Parking Brake: Energy-accumulating spring air cut-off brake

Auxiliary Brake: Engine brake

Front Suspension/Leaf Spring Number: Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar, 9 pieces

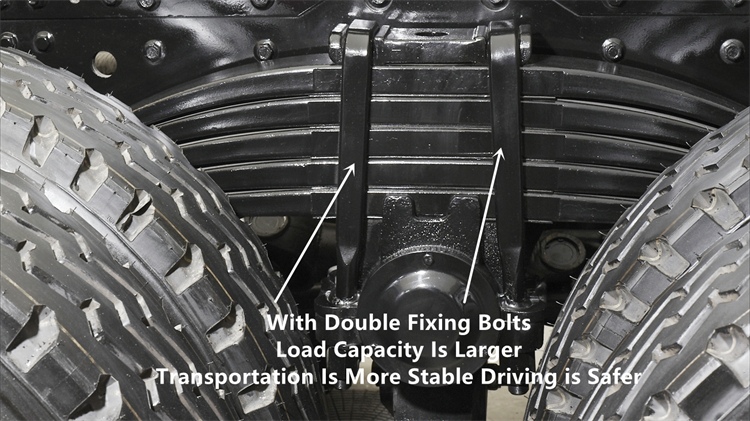

Rear Suspension/Leaf Spring Number: Longitudinal leaf spring with balance suspension, 12 pieces

Capacity(kg): 9000

Front Axle BrakeType: Drum brakes

Rear Axle Brake Type: Drum brakes

Tyre Size: "Standard:315/80R22.5

Numbers of Tyres: 10+1

Type: Hydraulic steering with power assistance

Steering Wheel: Adjustable

Type: Aluminum fuel  tank with lockable cap

Capacity: 700L

Rated Voltage: 24V

Battery: 2x12V-165Ah

ABS+ASR: Standard

A/C Standard

Air Deflector: Optional

Cruise: Standard

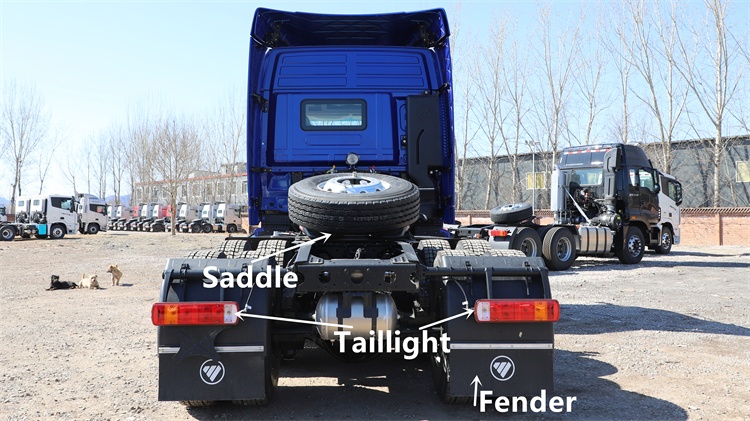

Fifth Wheel: 90#J0ST
